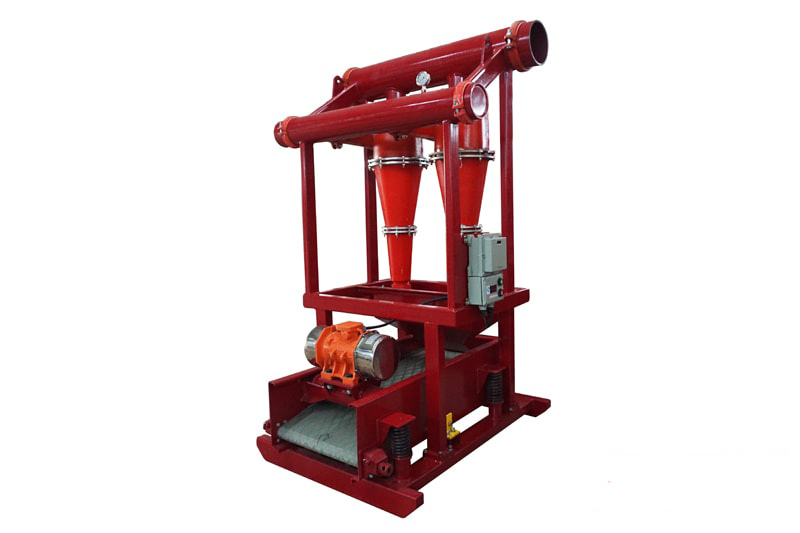

HDD Drilling Mud Desander Spiral Separator Mud Desander For Mining

Name: HDD Drilling Mud Desander Spiral Separator Mud Desander For Mining
Brand: Aipu
Price: 1 USD

China HDD Drilling Mud Desander Spiral Separator Mud Desander For Mining factory

Brand Name : Aipu

Model Number : APCS

Certification : API ISO

Place of Origin : China

MOQ : 1 sets

Payment Terms : L/C, T/T

Supply Ability : 100 sets per month

Delivery Time : 1 week

Packaging Details : sea worthy

hydrocyclone size : 8 ~ 12 inch

Power system : 380V,400V,415V,440V, 460V,480V,600V, 660V, Customizable

color : Customizable

applicable industrial : Energy & Mining

type : Spiral Separator

warranty : 1 year

condition : new

voltage : 380v/460v, or customized

Contact Now

HDD Drilling Mud Desander Spiral Separator Desander Energy & Mining

Similar desilter the desander is part of the solid control equipment on the drilling equipment. It is a hydrocyclone, whose main function is to remove 50 to 70 microns particle size sand. Desander installation position at the top of the pool of mud, the shale shaker, and after the deaerator, until desilter. All solids not removed by the shale sieve desander removed. Desander no moving parts, it is possible to remove sand and mud from the drilling fluid by centrifugal force on the desander.

Specifications

Model		APCS120/240/360	APCS120/240-M	APCS240/360-D3	APCS240/360-MG4
Capacity (m³/h)		120/240/360	120/240	240/360	240/360
Desander Cone		10"
Cone Qty		1 Pcs/2 Pcs/3 Pcs
Working Pressure		0.25-0.4Mpa
Separation Point		47-76 Microns
Inlet		6"
Outlet		8"
Bottom Shaker	Model	N/A	Hunter Mini	Hunter D3	Hunter MG4
	Vibration Mode		Linear Motion
	Vibrator Motor		2×0.75Kw	2×1.72Kw	2×1.72Kw
	G Force		≤7.5G
	Deck Angle		2°	-1 - +5°
	Screen Area		1.35㎡	2.27㎡	2.73㎡
	Screen Panel		2 Pcs	3 Pcs	4 Pcs
Dimension (mm)		2150×1000×1900	1680×1760×1850	2400×2000×2200	2640×2100×2200
Weight (Kg)		450/500/550	1050/1140kg	1800/1890	1900/1990

Desander and sand drilling fluid is a piece of important solid control equipment. The second stage is mainly used for drilling fluid purification. It removes harmful solid, stable performance of the drilling fluid and improved drilling efficiency. Desander hydrocyclones are made of cast iron. It is reliable, efficient, and long service life. Sand content after grit removal control 0.15% or less. Based on API RP 13C, with use the official API Monogram Certificate of Authorization.

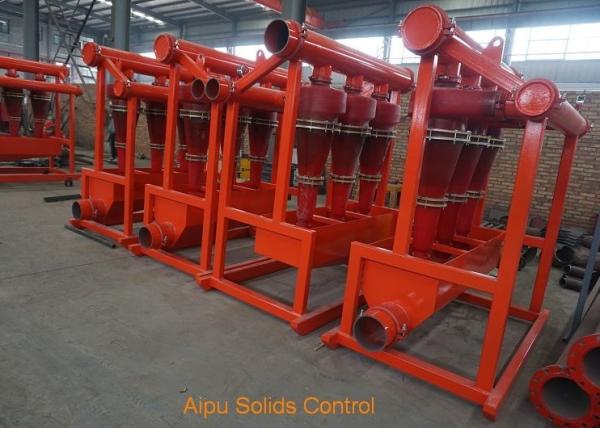

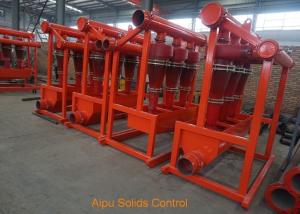

HDD Drilling Mud Desander Spiral Separator Mud Desander For Mining

Features:

Polyurethane ( PU ) material or high-chromium cast iron to make desander cones for a longer lifespan.
Clamp type, easy maintenance.
Compact design. a small footprint.
Flexible options for 1, 2, or 3 pieces of 10" or 12" cones for different capacities.
Flexible fast connections are available for user assembly.

Benefits:

Design: Adopt ANSYS limited element analysis to optimize the structure.
Material: Use Q235B from BAOSTEEL for the body, and High strength compound rubber material used to reduce shock.
Vibration motor: Italy OLI /American Martin, or according to customer requirement.
Electrical control system: Explosion-proof electrical control system with electrical components as ABB, Siemens, Schneider
Treatment: Grinding, Abrasive blasting, Epoxy zinc-rich primer, Intermediate painting with epoxy micaceous iron, and Finish painting with polyurethane
Hydrocyclone cone: Made of wearing-resist polyurethane and in the structure similar to design.
Inlet and outlet: Fast joint connection.

Aipu's Desander is an economical and practical desanding device. It is used as the second stage of the solids control system, separates solid particles' next stage equipment.
