Drilling Fluid Circulation Recycling System For Piling/HDD/TBM/Trenchless
Well drilling fluid circulation reccyling system is widely used in No dia/HDD/trenchless/TBM/CBM/Piling, and so on. Whole system usually contain shale shaker, Vacuum Degasser, Mud Desander, desilter, Mud Cleaner, Decanter Centrifuge, pump, Drilling Mud Agitator, Mud Gun, Mud Mixer , poor boy degasser, Mud Tank, etc.. Drilling mud cleaning(solids control) systems will suit rig max drilling depth from 2000m to 9000m, as well as the offshore rig or jack-up platform drilling. We promise clients optimal solution with a cost-efficient budget.
Drilling mud recycling system is widely used in oil and gas drilling, HDD, CBM/CGS, Piling desanding, TBM slurry separation, and so on. These industry request similar solids separation or remvoal function. Please find below more information
CBM mud system option
| Model | APMR-200 | APMR-350 | APMR-500E | APMR-500H | APMR-1000 |
| Mud Flow Capacity | 200GPM | 350GPM | 500GPM | 500GPM | 1000GPM |
| Tank Volume | 5.0㎡ | 11.5㎡ | 11.5㎡ | 19.0㎡ | 26.4㎡ |
| Total Power | 23.5Kw | 54Kw | 84Kw | 125Kw | 184Kw |
| Tank Size | 4000×2200×1500mm | 6000×2200×1800mm | 6000×2200×1800mm | 9500×2200×1800mm | 11800×2200×1800mm |
| Screen Area | 2.7㎡ | 5.45㎡ | 5.45㎡ | 5.45㎡ | 8.18㎡ |
| Weight | 5.6t | 9.5t | 10.0t | 16.5t | 18.0t |
| Dimention | 4000×2500×2650mm | 6000×2500×3350mm | 6000×2500×3350mm | 9500×2500×3450mm | 11800×2500×3450mm |
CBM Mud process system procedure
Drilling mud from well hole will flow into shale shaker directly or through a set of submersible slurry pump into shale shaker. The shaker is a first phase mud recycling equipment for 200 to 400 micron drilling cuttings by shaker screen. The fluids enter into shale shaker will drop into sand trap tank and dry solids will discharge through shaker screen.
A set of centrifugal pump sit on tank skid will pick up drilling mud from sand trap and transfer mud into desander inlet. The treated mud after desander will over flow into desander compartment and solids particles discharge through desander nozzle.
A second set of centrifugal pump will pick up mud from desander tank compartment and transfer mud into desilter cone. The treated mud after desilter will over flow into desilter compartment and solids particles discharge through desilter nozzle.
-
Please don't hesitate to contact Aipu if you have any demand or interest
Product Tags:
|
|

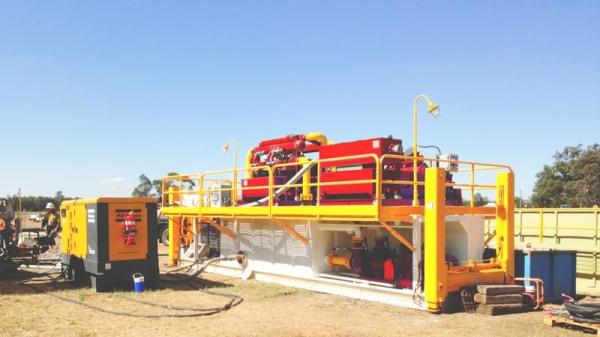

Circulation Recycling System Drilling Fluid Equipment For Piling / HDD / TBM / Trenchless Images
|
