Mud Suction Valves And Dump Valves Available In 6″, 8″, 10″, And 12″ Sizes
The suction valve acts as the control valve is in use drilling mud tank, the mud tank system for controlling the operation of mudflow or the mud during storage. It plays an important role in the control system throughout the solid.
The slurry tank valve comprises a suction valve and a discharge valve. The material can be an ordinary butterfly, seamless, and even stainless steel.
Considering the fluid flow pattern, and can be customized to the slurry tank valve and a T-cross type, except that the design of the suction port.
The pipeline configuration slurry tank, 6 ", 8", 10 "and 12" for user selection valve
Parameters of mud tank suction valves
| Name | Mud tank dump & suction valves |
| Size | 6", 8",10" and 12" or customized |
| Color | Customized |
| Valves length | Customized |
| Material | Common butterfly valves, seamless tube, and SS |
| Seals material | High temperature or oil resistance |
| Connection | Flange |
| Warranty | 18 months after shipment |
Mud tank suction & dump valve function
Initially, we mud suction valve configured with a crank wheel, which we call the operator spiral. Now we have a valve with a handle for more and more users to choose from.
Popular mud tank valves are 8" and 10". The details of the size or dimension may be manufactured according to various customer depth of the tank, the suction height, suction line requirements, and other specific requirements.
Other materials for the sealing member used in the O-ring and the flange of the plunger end disk assembly is Viton synthetic rubber, a high-temperature resistance.
How to maintain the suction valve in their daily work to ensure its performance, there are some tips for your reference.
- ensure proper mounting and dismounting of the suction valve.
- To check the position of the respective O-rings and gaskets, if damaged, replace them.
- Check whether flexible or bearing damage.
- Check the installation, a suitable amount of the coating on the screw butter, and oil-filled therein, in order to ensure flexibility handwheel rotation.
Mud tank suction valve price
The absorbent slurry tank valve varies greatly depending on the design. But the overall design and cost are similar. For example, 8 "mud pots average about $ suction valve with screw-type controller 900 and the T-port. If necessary official, please send us detailed requirements, such as length, color, quantity, and number. If you have any questions or interest, would be very welcome.
Suction valve height calculation
First, make sure the valve pipe size. Some valve port in the valve body and made of the same tube, part of which is different.
Second, confirm slurry tank height, i.e. the height of the interior.
Third, the level of the internal conduit confirmed.
Finally, if there are special requirements for handling the can top.
Based on the above information, the AIPU entity may provide overall control of FIG. Without confirmation, the mud tank suction valve can be easily completed.
Product Tags:
|
|

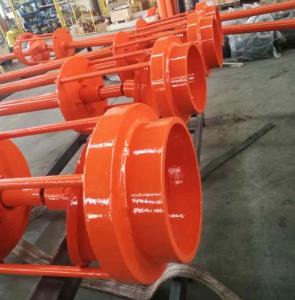

Solids Control Seamless Tube 12" 6″ Mud Dump Valve Images
|
